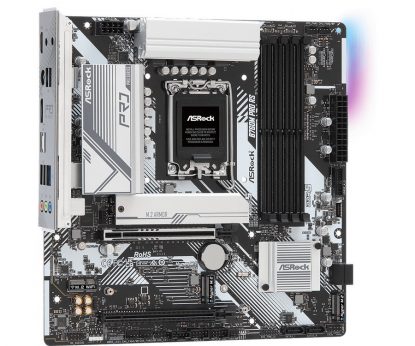

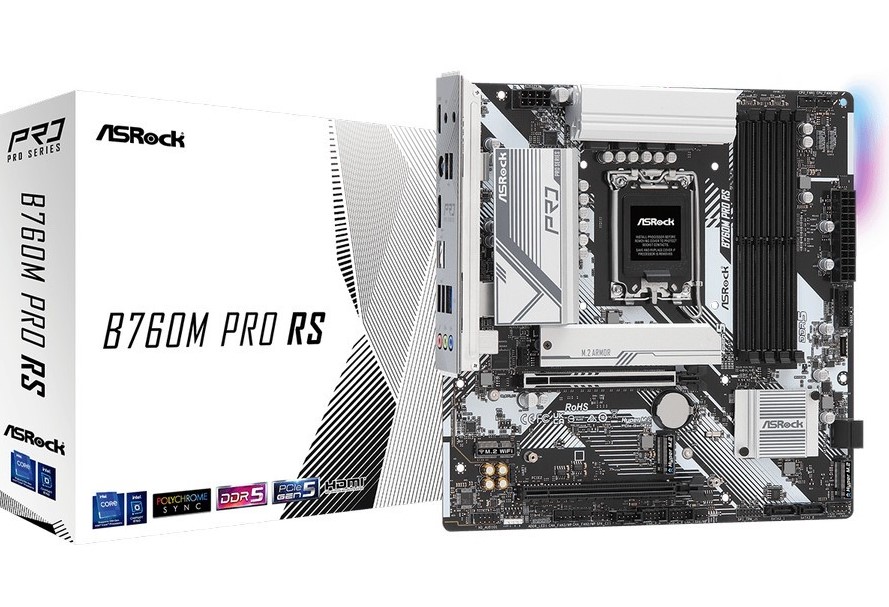

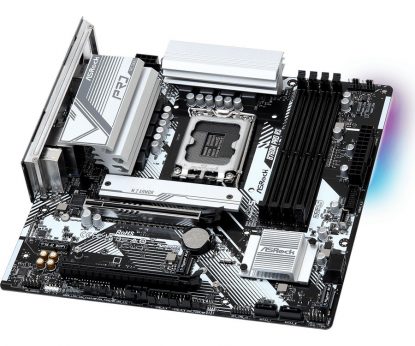

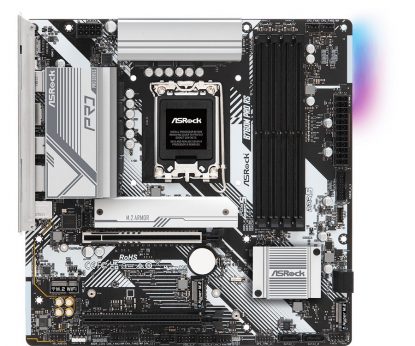

MOTHERBOARD INTEL ASROCK B760M PRO RS LGA 1700 GEN. 14/13/12 DDR5

Description

KEUNGGULAN
• Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
• 7+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

SPESIFIKASI
Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN EZ Update
– ASRock Auto Driver Installer
CPU
– Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel Thermal Velocity Boost (TVB)
– Supports Intel Adaptive Boost Technology (ABT)
Chipset
– Intel B760
Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x M.2 Socket
Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
Accessories
– 1 x User Manual
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
– Microsoft Windows 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
