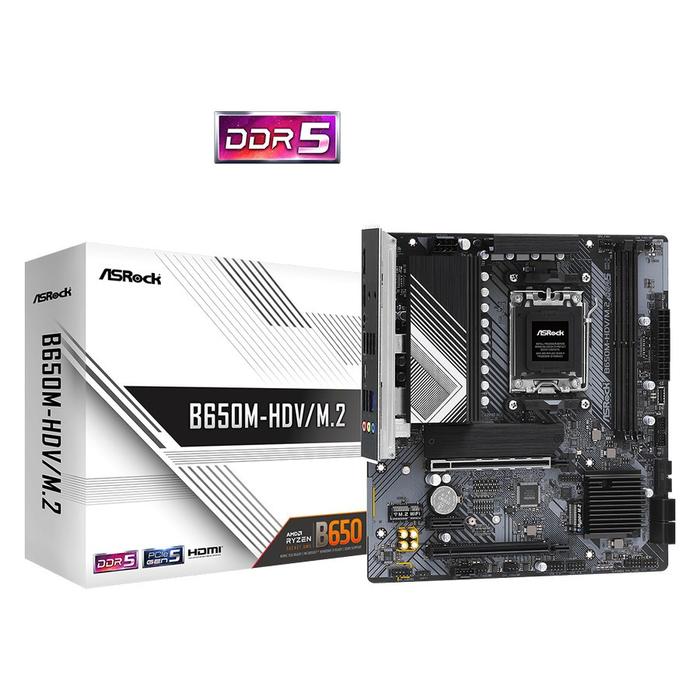

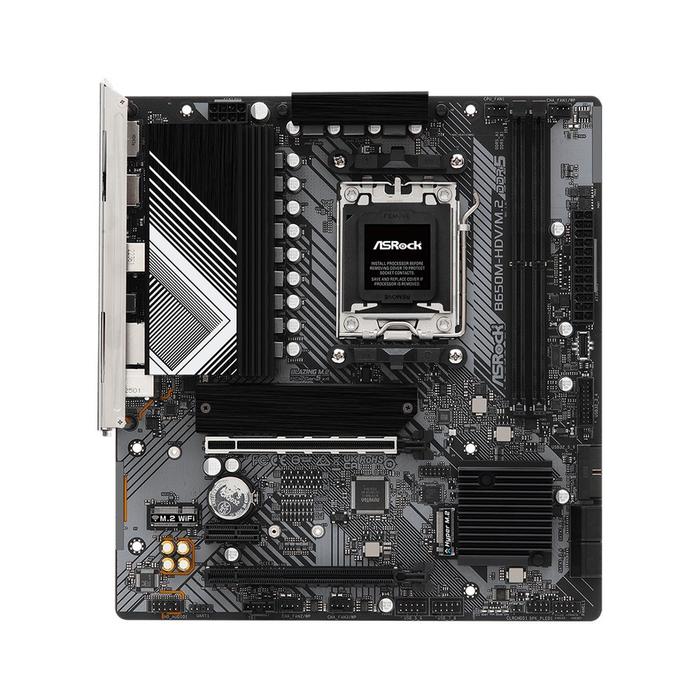

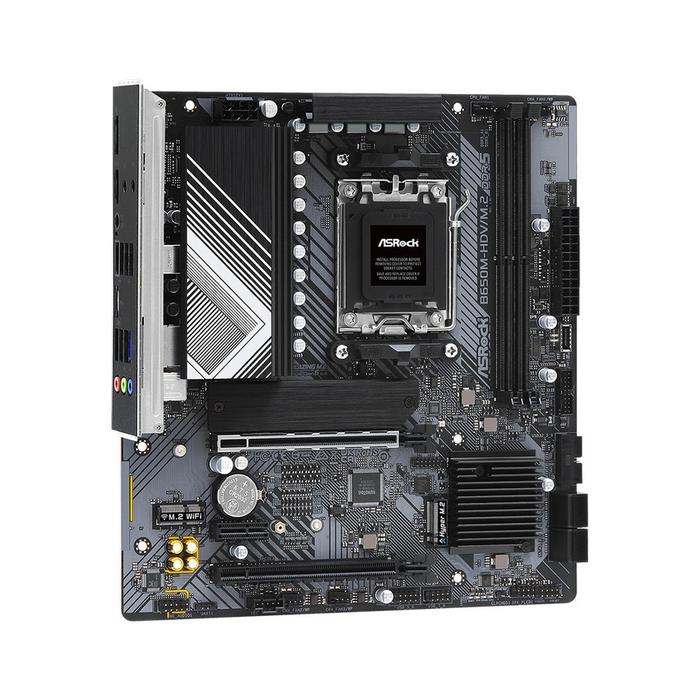

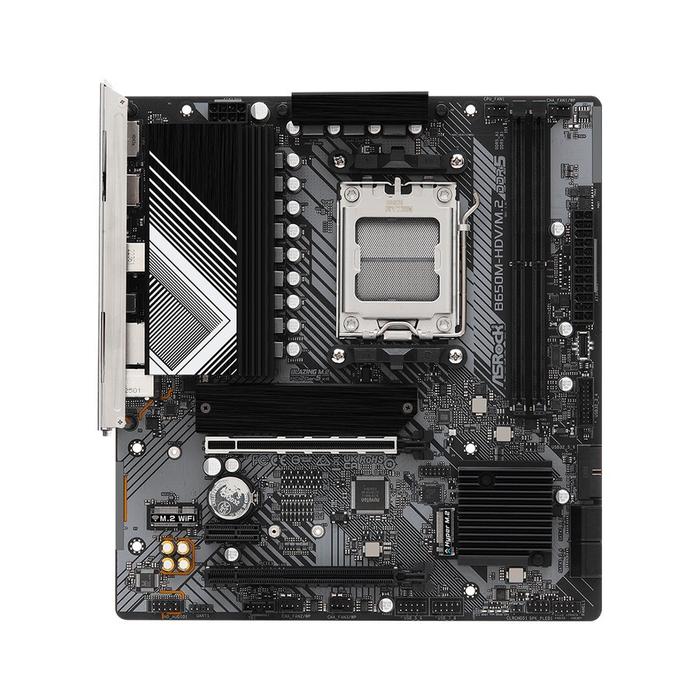

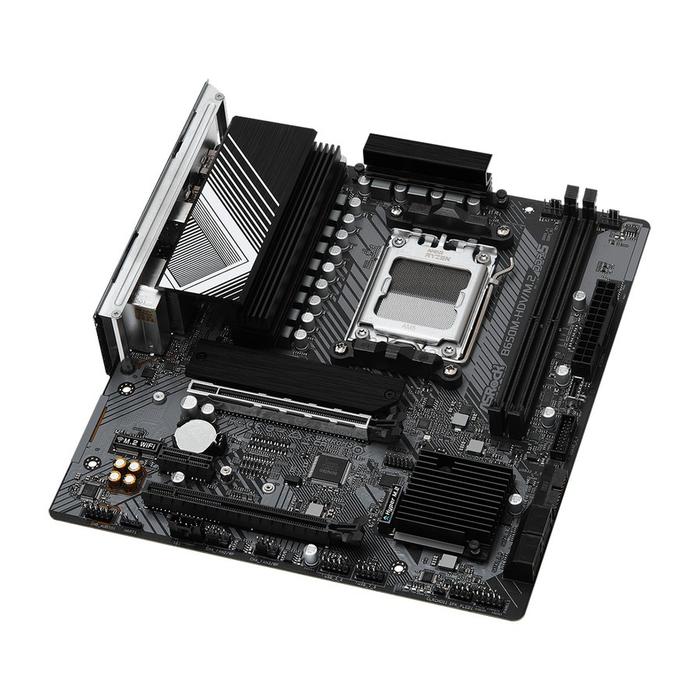

MOTHERBOARD AMD ASROCK B650M HDV/M.2 AM5 DDR5

Description

SPESIFIKASI
CPU
– Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset :AMD B650
Memory
-Dual Channel DDR5 Memory Technology
-2x DDR5 DIMM Slots
-Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
-Max. capacity of system memory: 128GB
-Supports Extreme Memory Profile (XMP)
BIOS : 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
Slots
*CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
*Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type
2230 WiFi/BT PCIe WiFi module
Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
USB
– 1 x USB 3.2 Gen2 Type-C (Front)
– 1 x USB 3.2 Gen1 Type-C (Rear)
– 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
Form Factor
– Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
– 2oz Copper PCB
OS
– Microsoft Windows 10 64-bit / 11 64-bit
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics*
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2 Front Type-C,
7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
Pre-Installed I/O Shield
