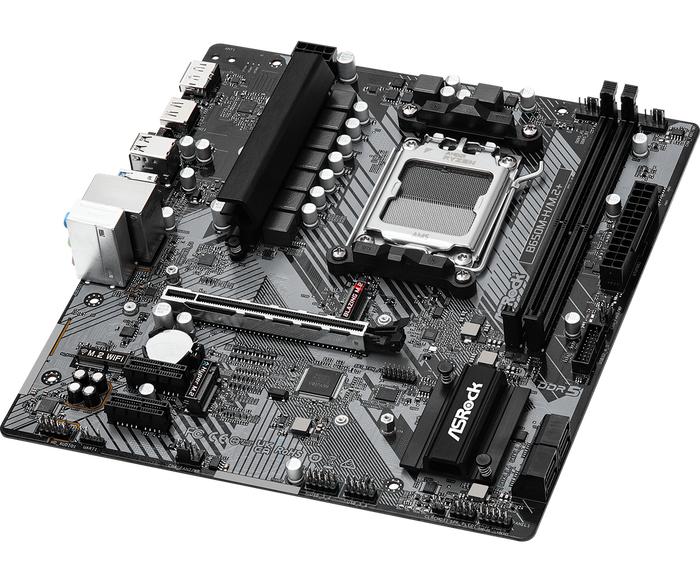

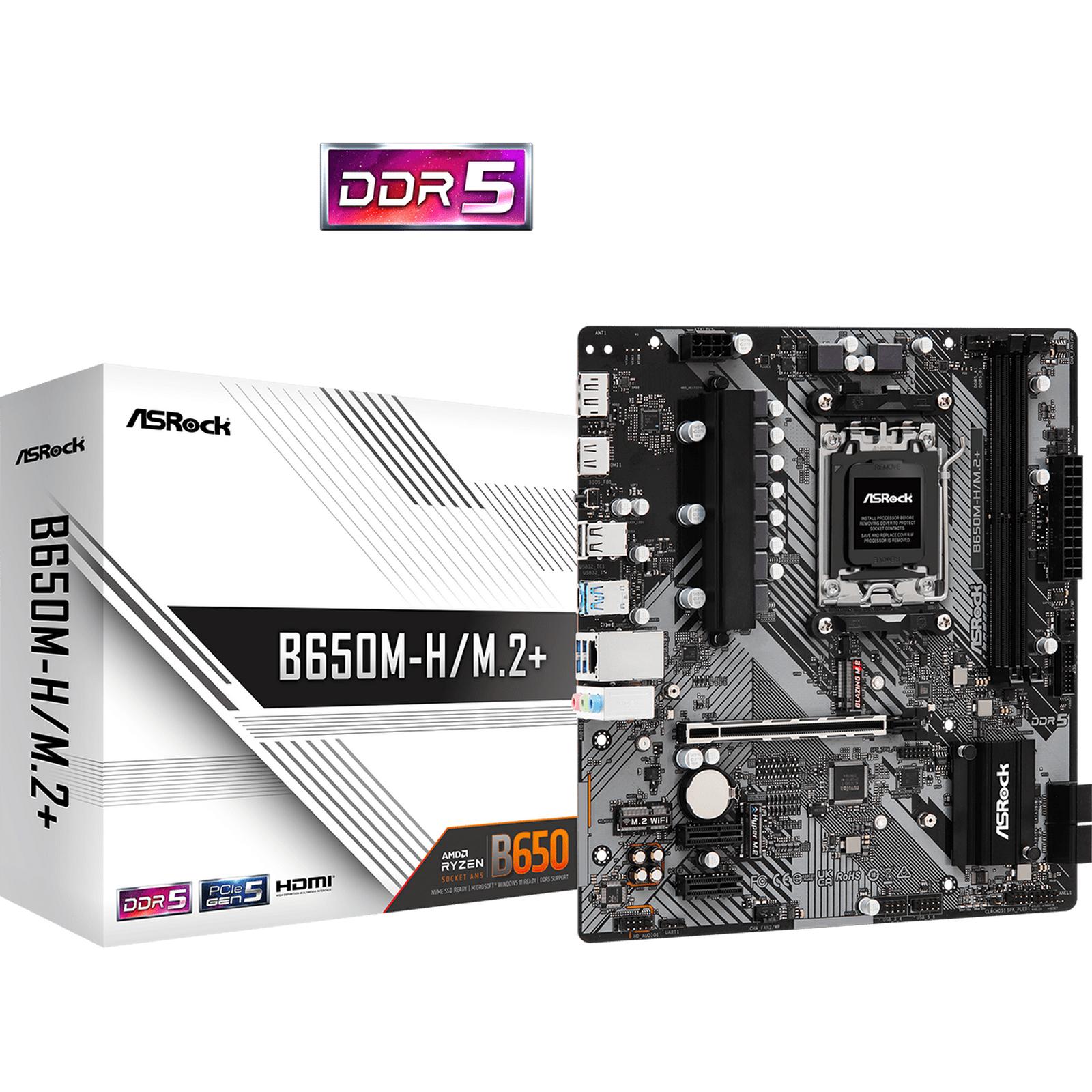

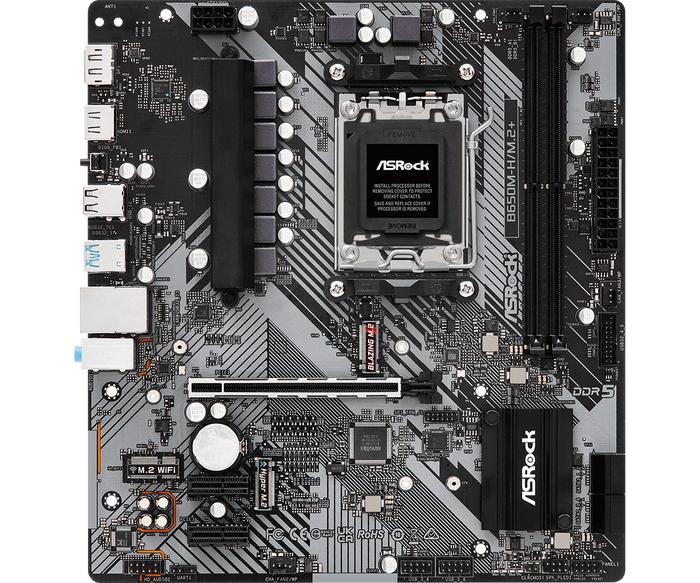

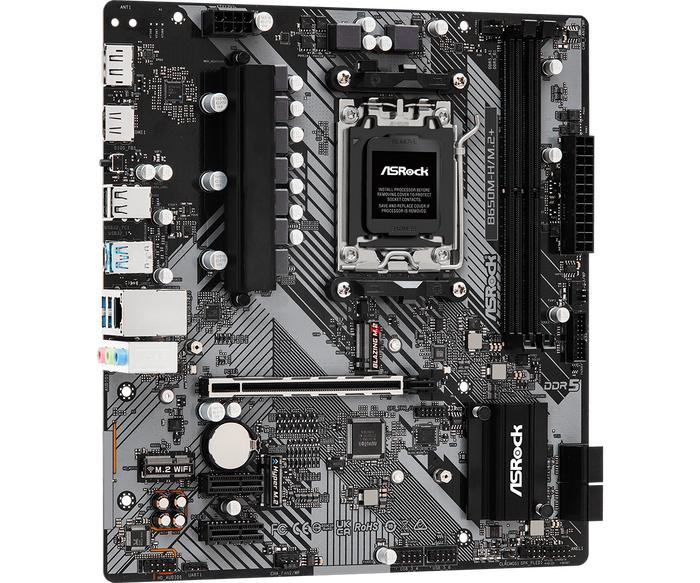

MOTHERBOARD AMD ASROCK B650M-H/M.2+ AM5 DDR5

Description

SPESIFIKASI
CPU : Supports AMD Socket AM5 Ryzen 7000 Series Processors
Chipset : AMD B650
Memory :
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
– Max. capacity of system memory: 96GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory
modules
BIOS : 256Mb AMI UEFI Legal BIOS with GUI support
Graphics :
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K
120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K
120Hz
Audio :
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN :
– Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
Slots :
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage :
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors

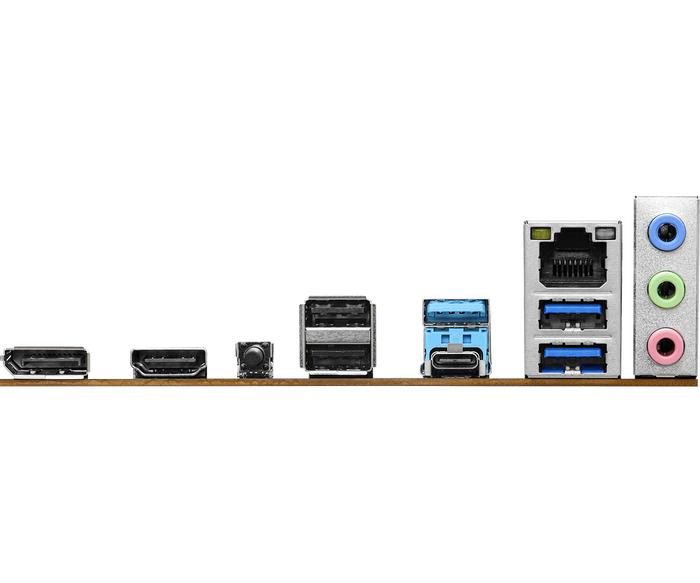

USB
– 1 x USB 3.2 Gen1 Type-C (Rear)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
Form Factor : Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS : Microsoft Windows 10 64-bit / 11 64-bit
